What are the Different Types Of Drilling Machines?

Updated by

Drill machines are available in different types, each designed for specific use. While some of them are quite easy to operate, others require high skills and sound knowledge of the device.

If you are not aware of the various types of drills available, you are on the right page. In this article, we shall learn the types, their working principle, and their applications.

Keep reading till the end to learn everything you need to know about the drill machines.

Let us get into our discussion of what a drilling machine is.

What are the Drilling Machines?

Drilling machines are those powerful tools used for drilling or cutting a hole in the walls or other surfaces. It is indispensable equipment mostly used in machinery manufacturing industries and other factories. Before we discuss about the various types of drills available, let us go through the different parts of the machine.

What are Some Common Parts of a Drill Machine?

To get a better understanding of the drill machine, let us have a look at some of its common parts.

Base: This is the most crucial component of the drill machine, as it acts as the base of the device. Made from cast iron, it carries the entire weight of the machine. The column of the drill comes mounted vertically on this base.

Column or Pillar: The column or pillar is yet another crucial part of the machine that sits vertically on one side of the base. Made from cast iron, it helps in supporting the armload as well as the drill head. It facilitates the movement of the arm, i.e., in the clockwise or anti-clockwise direction.

Radial Arm: This is an upper arm situated on top of the column horizontally. You can raise or lower the arm to allow the worktable to accommodate workpieces of various heights. It has the drill head on it.

Drill Head: The drill head comes mounted on the radial arm. You can slide this head up and down accordingly based on the requirement of your job.

Types of Drilling Machines

Based on the purpose and structure, we can categorize drilling machines into the following types:

  • Portable Drilling Machine
  • Radial Drilling Machine
  • Upright or Column Drill Machine
  • Gang Drilling
  • Sensitive Drilling Machine
  • Multi-Spindle Drilling
  • Vertical Turret Type Drilling Machine
  • Automatic Drilling Machine
  • Deep Hole Drilling Machine
  • Pillar Drilling Machine
  • Milling Machine

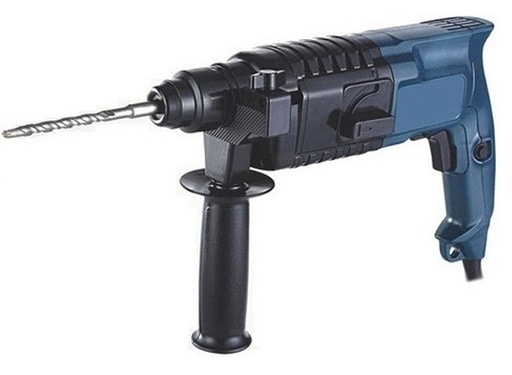

1. Portable Drilling Machine

This is the most commonly used drilling machine. Many manufacturing companies use it, and you can also find it on most homes.

Construction

Also known as a hand drilling machine, this device comes with an electric motor. It is small and compact in size, hence the name, portable. One can carry this machine along with him to his work location.

Purpose

People use it to drill small holes on the surfaces.

Ideal For

A portable drilling machine is best suitable for surfaces or materials like wood, stone, metals, etc.

Features

The small motor of this machine is capable of drilling holes with a diameter of 12mm to up to 18mm diameter. They can operate at high speeds.

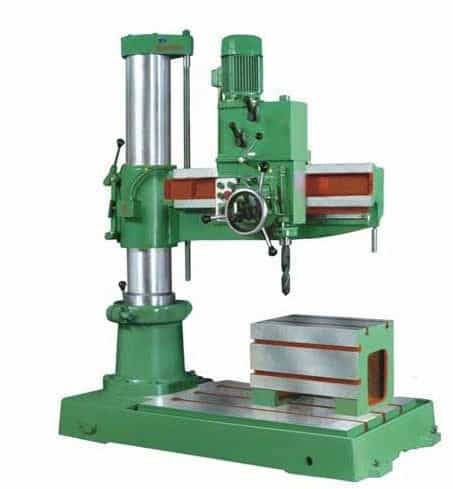

2. Radial Drilling Machine

A radial drilling machine is the most versatile and largest of all the drills available.

Construction

This machine consists of a radial arm, vertical column, drill head, spindle, feed, etc.

Purpose

It is a single spindle device that is capable of handling heavy and large works that a smaller

drill cannot do.

Ideal For

A radial drilling machine is ideal for heavy-duty work and for drilling a larger number of holes.

Features

The radial drilling machine facilitates angular hole drilling by allowing the radial arm to rotate on a horizontal axis. The speed of spindles and the feed of the machine range from about 20 to 1600 rpm and 0.05 to 3 mm, respectively. You can also do angular cutting with these devices. You can accomplish that by providing a swivelling arrangement to the drilling head.

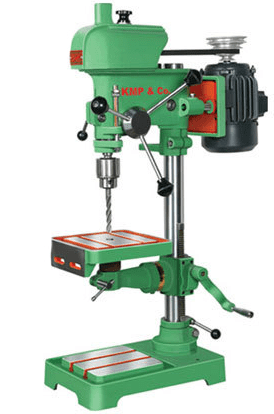

3. Upright Drilling Machine

Upright drilling machines are the tools used for drilling medium and large-sized holes.

Construction

These machines are again of two types based on the column. They are – round column section upright drilling machine and box column section upright drilling machine. The upright devices also come with spindle feed and speed.

Purpose

These tools are mostly used for producing large holes in the heavy or larger parts.

Ideal For

The upright drilling machine is ideal for heavy-duty drilling and also for making a large number of holes that are larger in size.

Features

These machines allow a power feed mechanism to the operator. The spindle comes with variable speed ranges, i.e., from 75 rpm to 3500 rpm. The spindle disengages automatically when it reaches its upper and lower limit of travel.

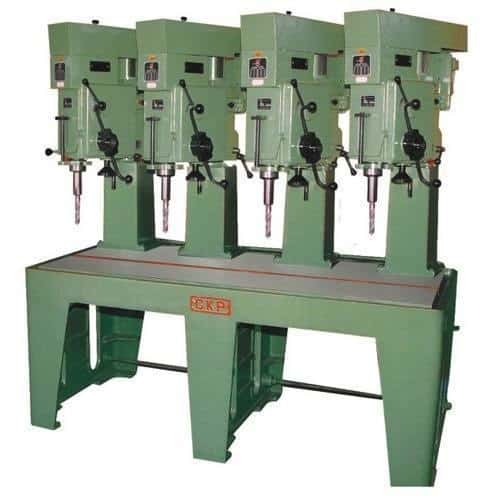

4. Gang Drilling Machine

The gang drilling machine is that specific type of drilling machine that is capable of drilling a massive number of holes simultaneously.

Construction

These devices come with a common table, base, spindle, like every other machine. In addition to those, they have four to six drill heads placed side-by-side. Each drilling head has a separate motor for working.

Purpose

You can use a gang drilling machine for multiple operations like drilling, counterboring, reaming, etc.

Ideal For

The gang drilling machine is best suitable for drilling holes of different sizes. You can use it in place of a multi-spindle drilling machine for cost-saving.

Features

The several spindles of the device facilitate quick movement of work between the spindles. You can use these tools for various applications like multiple hole drilling, etc.

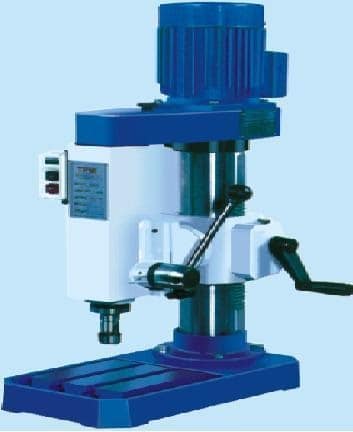

5. Sensitive Drilling Machine

Also known as bench drilling machines, these devices are for making small holes at a higher rate.

Construction

Sensitive drilling machines come with a bench containing bolts and nuts. They also have a base, spindle, spindle head, table, drill head, etc. These devices come in both floor and table types.

Purpose

The primary purpose of these machines is to allow the operator to apply less pressure and adjust the applied pressure accordingly.

Ideal For

A sensitive drilling machine is ideal for making small holes at an infinite speed ratio.

Features

The motor of the device has a speed of 800 to 9000 rpm with a maximum drilling capacity of 12.5 mm.

6. Multi-Spindle Drilling Machine

Multi-spindle drilling machines are production machines designed mainly for drilling many parts with accuracy.

Construction

As the name says, they contain multiple spindles connected to one main work head.

Purpose

The primary purpose of using a multi-spindle drilling machine is to drill a large number of parts that have many holes in closer proximity.

Ideal For

A multi-spindle drilling machine is best suitable for drilling a large number of holes simultaneously on a single workpiece.

Features

The multi-spindle drilling machines facilitate production at a very high rate because of the several spindles in them.

7. Vertical Turret Type Drilling Machine

Construction

These are small and compact configuration devices consisting of a high precision spindle,

cutting tools and several drilling heads mounted on a turret.

Purpose

They are exclusively designed for construction industries, die sinking, and contouring industries.

Ideal For

They are ideal for a range of workshop activities like cutting, drilling, reaming, counterboring, etc.

Features

The different types of cutting tools help in cutting, drilling, reaming, etc., and that too in the desired sequence.

8. Automatic Drilling Machine

Automatic drilling machines are those tools that eliminate using manpower.

Construction

It consists of multiple unit heads that have either single or multiple spindles.

Purpose

They are exclusively proposed for the cycle of drilling.

Ideal For

An automatic drilling machine is best suitable for high production work. It helps you get lots of work done in no time.

Features

They use electricity or compressed air for work.

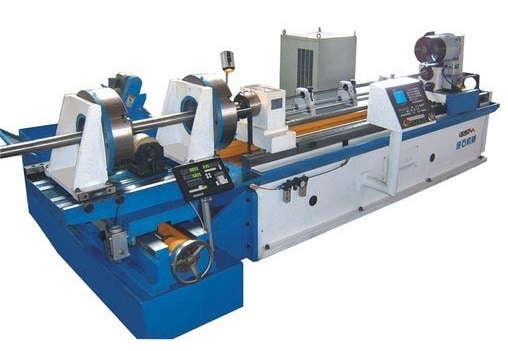

9. Deep-Hole Drilling Machine

As the name suggests, these machines are for drilling deeper holes whose length is thrice the size of a drill.

Construction

It consists of a rotating tool, rotating workpiece, and a counter-rotating tool and workpiece, shaft, coolant supply, and chip box. Also, they may contain single or multiple spindles.

Purpose

These devices are exclusively for drilling deep holes in connecting rods, barrels, long spindles, etc.

Ideal For

A deep hole drilling machine is ideal for drilling deep holes with a ratio of 20:1 depth to diameter and even more.

Features

These machines facilitate drilling such holes with great accuracy, efficiency, and reliability.

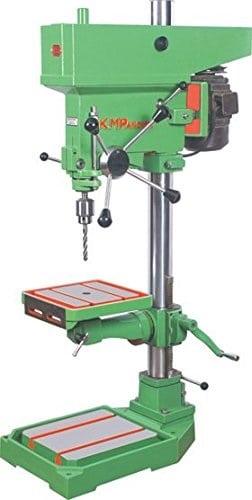

10. Pillar Drilling Machine

A pillar type drilling machine is that type of tool specifically used for precise drilling of holes

to an exceptional profundity.

Construction

Also known as a drill press or bench drill, this device consists of a locking lever, chuck, guard, table, table lock, pillar, lever, and motor.

Purpose

These heavy, sturdy, and high-tech machines are for various domestic purposes.

Ideal For

A pillar drilling machine is ideal for drilling multiple holes of the same depth and dimension in succession.

Features

Pillar drilling machines offer greater efficiency and high precision when drilling holes.

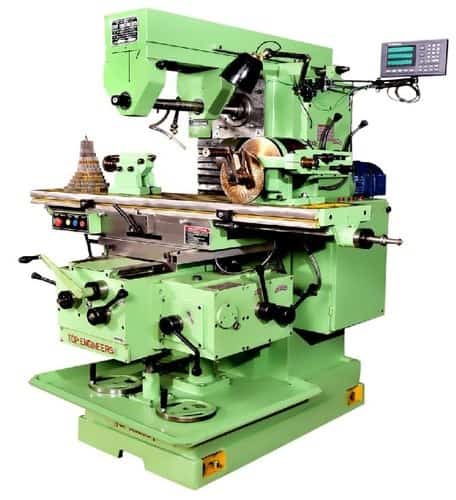

11. Milling Machine

A milling machine is a multi-functional drilling tool, which is the most influential and versatile kind of machine.

Construction

It consists of a base, column, knee, saddle, table, over-arm, and spindle.

Purpose

Having a multi-functional capacity, these devices are suitable for all purposes. Constructional engineers mostly use these machines to drill in heavy and bulky surfaces

Ideal For

A milling machine is ideal for both drilling and milling.

Features

They are capable of providing a flat surface of the workpiece. You can even use these machines to make gears and more.

Conclusion

I hope this article helped you get all the information regarding drilling machines, their various types, and their applications. I am sure you are now equipped with full knowledge of the drills.

Write to us in the comments section below if you find this article helpful and insightful. Do not hesitate to ask your questions by posting them in the comments. Please feel free to add your inputs to this article and share your feedback with us.

We would love to hear from you.

Stay home, stay healthy and stay safe!!!
